Outsource Piping Design & Drafting

Piping systems in industries, automobiles, locomotives, marine vessels form the circulation system for various fluids. Well thought out and efficiently laid piping systems help in reduction of space utilization for setup, increased accessibility, enhanced safety and easier maintenance. It is imperative to visualize piping layouts using CAD tools before installation for specific purpose to garner above advantages.

Piping systems being so critical for desired operation of plants are subjected to different loads and stresses like pressure, temperature, vibrations and seismic conditions depending on the type of fluid, temperature of the fluid and surrounding conditions. Considering these conditions, our company caters to customers' requirements pertaining to piping system validation and optimization through pipe stress analysis services


Piping systems and Pipe stress analysis services from R RADIANT ENGINEERING include:

Piping systems – CAD

  • Paper or blue print to CAD
  • 2D piping layouts

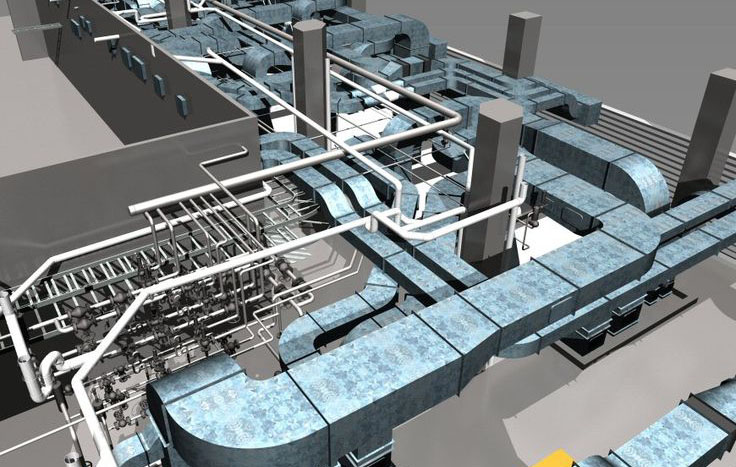

  • 3D Piping layouts
  • Plot plan Development
  • Conceptual Pipe Routing
  • Piping Design Criteria Development
  • Pipe Sizing Calculation

Pipe stress analysis carried out on the following Type -

  • Metallic
  • Buried
  • Jacketed
  • Cross Country Pipelines
  • Sub Sea
  • Buried
  • Internally Lined Piping (Example: Ceramic Lined Pulverized Coal Piping)
  • All loads (Weight, Thermal, Seismic, Wind, etc.)
  • Nonmetallic (Example: FRP (GRP), HDPE, PVC, etc.)

R RADIANT ENGINEERING has been providing piping systems and piping stress analysis for industries like

  • Process industries
  • Marine vessels
  • Power
  • Industrial installations

Software used for piping systems and piping stress analysis at R RADIANT ENGINEERING

R RADIANT ENGINEERING has expertise with Piping software like AutoCAD, PDMS, CAESAR II, CAEPipe, AFT IMPULSE.
